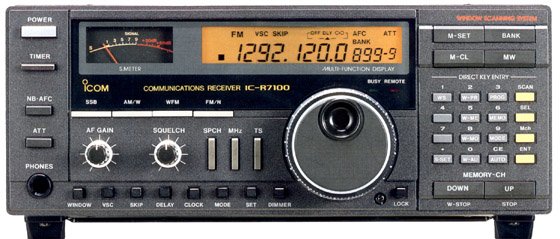

Bo's ICOM IC-R7100

General

Frequency Range

25-2000 MHz

Power 117 VAC, 220 VAC or 13,8 VDC 1,9 A
Antenna Impedance 50 Ω, Unbalanced (Type N)
Selectivity (-6dB)
SSB : 2,4 kHz/-6 dB
AM, FM-N : 6,0 kHz/-6 dB
FM, AM-W : 15  kHz/-6 dB
FM-W : 150 kHz
Sensitivity Typical
SSB  : 0,2 ÁV  at  10 dB S/N
AM   : 1,6 ÁV  at  10 dB S/N
WFM : 1,0 ÁV  at  12 dB SINAD
FM : 0,35 ÁV  at  12 dB SINAD
Spurious Rejection >50 dB
Frequency Accuracy ▒10 x 10-6 or better
Frequency Stability

▒ 5 PPM < 1025 MHz

Intermediate Freqs.
First  : 778,7 MHz <512MHz
First  : 266,7 MHz >512MHz
Second  : 10,7 MHz
Third  : 455 kHz
Tuning Steps 0,1; 1; 5; 10; 12,5; 20; 25; 100 kHz and 1 MHz
Audio Output 2,0 W, 4 - 8 Ω
Case Size 241 (W) x 94 (H) x 181 (D) mm
Weight (Approx.) 1,4 kg

Note:  Specs. guaranteed 25~800 and 1240~1300 MHz.
